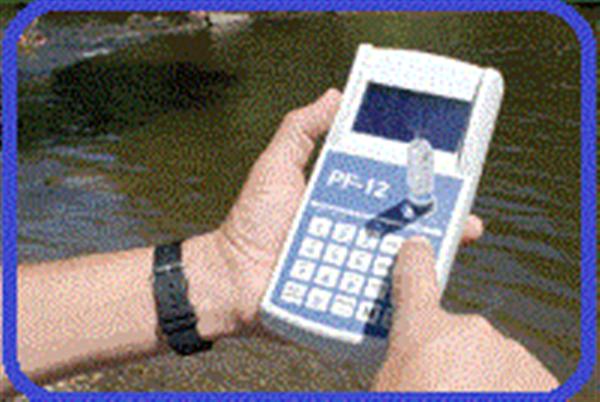

| Compact photometer PF-12 |
| |
| Maximum flexibility
- More than 100 pre-programmed methods
- Automatic wavelength adjustment
- Backlit graphic display with intuitive user guidance
- Data storage according to GLP
- USB interface for data transfer, update and power supply
Experience flexibility
The compact photometer PF-12 is the logical result of a further development based on our very successful photometer PF-11. Adapted to our customers‘ requirements the PF-12 impresses with modern design and precise analytic. Pre-programmed tests, automatic wavelength adjustment and the intuitive user guidance allow fast and easy operation. Results are stored according to GLP and transferred safely to your PC with the included PC-software. The PF-12 offers an unrivaled flexibility with variable power supply via mains supply, standard and rechargeable batteries, PC and 12 V car adapter; photometric analysis of VISOCOLOR® ECO tests and NANOCOLOR® tube tests including all relevant parameters for water and waste water analysis and individual combination of tests in the new reagent cases.
|
 |
| |
| Save time
Backlit graphic display with self-explanatory user guidance
- All tests and menu items can be activated fast and easily
- Operation without complex and time-consuming training
Measurement without cuvette slot cover
The progressively designed optics is insensitive to external light and makes measuring straightforward
Be prepared for the future
Fast photometer update - free of charge
- At any time, stay up-to-date with our easy online software update
- For the current software update please visit
www.mn-net.com
 |
|
Assure results
Documentation of results according to GLP
- Individual entries of sample number, sample Location and dilution
Clear memory management
- GLP-conform storage of results with all supplementary information such as date, time, sample number, sample location and dilution
- Fast and easy access to stored results and data sets
Convenient data export
- NANOCOLOR® Software DVD included in delivery
- Easy transfer of results to PC
- Data export directly to MS Excel
- Recording of calibration curves to programme user-defined methods
Internal quality control according to ISO 9001
- Fulfill supervisor and authority requirements
- Fast and easy self-monitoring of photometric accuracy with NANOCONTROL NANOCHECK (REF 925 701)
|
| |
| Be mobile
Works under any condition
- Variable power supply for mobile use:
|
 |
 |
 |
| Standard and rechargeable batteries for more than 2000 off the line measurements |
USB adaptor (REF 919 220) for mains supply and cigarette lighter in the car |
USB adaptor for mains supply in the lab |
|
- Power saving auto-off function after 5, 10, 15 or 20 min
- Waterproof housing (IP 67)
|
| |
| Enjoy versatility
Complete water and waste water analysis
- Ammonium, Chlorine, total-N, total-P, Nitrate, Nitrite, all COD tests and many more
- More than 100 pre-programmed tests
- VISOCOLOR® ECO tests
- NANOCOLOR® tube tests
- Programmable for 10 user-defined methods
- Photometric basic functions: absorbance, transmission, factor and standard
|
 |
| |
| Endless opportunities
Individual mini-labs
- Portable reagent cases with photometer PF-12
- Photometric analysis of VISOCOLOR® ECO tests can be combined with:
|
 |
 |
 |
 |
| Qualitative test papers, VISOCOLOR® reagent bottles |
QUANTOFIX® test strips, pH-Fix test strips, pH indicator papers and |
Accessories |
| |
| Technical data |
|
| Type: |
Filter photometer with microprocessor control, self-test and auto-calibration; Wavelength range 340 - 860 nm |
| Optics: |
Automatic filter wheel with 7 interference filters
Insensitive to external light - no light shield required |
| Wavelengths: |
345 / 436 / 470 / 540 / 585 / 620 / 690 nm
plus 1 compartment for additional filters |
| Wavelength accuracy: |
± 2 nm, bandwidth at half transmission 10 - 12 nm |
| Light sources: |
Tungsten lamp |
| Detector: |
Silicon photodiode |
| Blanc value: |
Automatic |
| Measuring modes: |
Over 100 pre-programmed tests
(NANOCOLOR® tube tests and VISOCOLOR®ECO tests)
Adsorbance, transmission, factor, standard
10 freely programmable methods |
| Photometric range: |
± 3 E |
| Photometric accuracy: |
± 1 % |
| Stability: |
< 0.002 E/h |
| Cuvette holder: |
Round tubes 16 mm OD |
| Data memory: |
200 results, GLP conform |
| Display: |
Backlit graphic display, 64 x 128 pixels
All important data at a glance: Result in respective unit, date, time, sample number, sample location and dilution |
| Operation: |
Display user guidance, plastic foil keyboard
Test selection via test number or parameter lists
12 languages (de, en, fr, es, it, nl, hu, pl, pt, cz, id, si) |
| Quality Control: |
With NANOCONTROL NANOCHECK |
| Interface: |
USB 2.0 |
| Update: |
Via Internet/PC; free of charge |
| Operating range: |
0 - 50 °C , up to 90 % relative humidity |
| Power supply: |
Via USB power supply, standard or rechargeable batteries |
| Housing |
Waterproof, IP 67 |
| Dimensions: |
215 / 100 / 65 mm |
| Weight: |
0.7 kg |
| Warranty: |
1 years |
This appliance comply with the following EC directives:
– 2006/95/EG – Low-Voltage Directive
– 2004/108/EG – EMC Directive |
| |
| Ordering information |
|
| Compact photometer PF-12 incl. software DVD, manual, 4 batteries, 4 empty test tubes, funnel, beaker, syringe, USB cable, calibration cuvette and certificate in rugged case |
REF 919 200 |
| USB power supply |
REF 919 220 |
| Charger |
REF 919 221 |
PF-12便攜式多功能水質測試儀
最大適用性
- 超過100個預置測試方法
- 自動調整波長
- 背投顯示，直觀的用戶操作指南
- GLP數據存儲
- USB接口進行數據傳輸，軟件更新和電力供應
經驗的靈活性
PF-12光度計是基于我們非常成功的PF-11光度計的基礎上研發的新品。PF-12光度計適用于那些需要現代化設計和精確分析結果的客戶。預置的測試程序、自動波長調整和一目了然的用戶操作指南可以實現快速、簡單的操作。測試結果依照GLP進行存儲，并通過PC軟件安全地傳輸至個人電腦。
PF-12提供了一個靈活的供電方式，可通過電源線供電、用標準的或可充電電池供電、個人電腦或者是12V的汽車適配器進行供電。
PF-12可以配合VISICOLOR試劑和NANOCOLOR試管試劑對水及廢水進行系統的光度法分析，
節省時間
背投顯示，明了的用戶操作指南
- 所有測試和菜單選項，都可以快速方便的激活
- 簡單的操作，不需要專門的培訓
- 測量時無需在試管槽上加遮光罩
- 最新設計的光學裝置不受外部光線影響，可以直接測量
提供免費系統更新及升級服務
可靠的結果
GLP結果如下：
- 分別輸入樣品編號，取樣地點和稀釋比例
- 清晰的儲存管理
- GLP符合包括附加信息的結果儲存，比如：日期，時間，樣品編號，取樣地點和稀釋比例
- 快速、簡單地訪問存儲的結果和數據設置
- 方便的數據輸出
|
技術參數
|
|
|
類型
|
微處理控制的單光束濾光光度計、自動測試、自動校準，波長范圍340 - 860 nm
|
|
光學原理：
|
由7個濾鏡片組成的濾鏡輪，外部光源不會對測試產生干擾——無需遮光
|
|
波長
|
345 / 436 / 470 / 540 / 585 / 620 / 690 nm
附加一個可以放置其他濾光器凹槽
|
|
波長精度
|
± 2 nm；帶寬:10-12 nm
|
|
光源
|
鎢燈
|
|
檢測器
|
硅光電二極管
|
|
空白值
|
自動
|
|
測量模式
|
超過100種預置測試程序（NANOCOLOR試管試劑和VISOCOLOR ECO試劑）
10種可以自由編程的方法
|
|
光度范圍
|
± 3 E
|
|
光度精確度
|
± 1 %
|
|
長期穩定性
|
< 0.002 E/h
|
|
樣品槽
|
16mm外徑圓形試管
|
|
數據存儲
|
200個測量數據，GLP兼容
|
|
顯示屏
|
背投顯示，64 x 128像素
所有重要的數據一目了然：單位，日期，時間，樣品編號，取樣地點和稀釋比例
|
|
操作
|
顯示用戶操作指南，覆鋁箔的按鍵，通過測試方法編號或參數表進行方法選擇
12種語言可供選擇
|
|
質量控制
|
使用NANOCONTROLNANOCHECK試劑組
|
|
接口
|
USB 2.0
|
|
升級：
|
通過Internet/PC，免費升級
|
|
操作條件：
|
0 - 50 °C，相對濕度不超過90%
|
|
電源：
|
過USB供電，標準或可充電電池
|
|
外殼
|
防水等級，IP 67
|
|
尺寸:
|
215 / 100 / 65 mm
|
|
重量
|
0.7 kg
|
|
保修
|
2 years
|
|
此儀器遵循以下EC規范:– 2006/95/EG –低壓規范，– 2004/108/EG – EMC規范
|
測試參數 測試范圍 保質期（月） 測試次數 產品編號
氨氮 3 0.1 - 2.5 mg/l NH4+ 18 50 931208
氨氮 15 0.5 – 8.0 mg/l NH4+ 18 50 931210
氯 1-60 mg/l Cl- 12 50 931218
氯 2 (自由+總) 0.10 - 2.0 mg/l Cl2 18 150 931215
自由氯 2 0.10 - 2.0 mg/l Cl2 18 150 931216
氯 6（余氯+總氯） 0.05-6.00mg/l Cl2 24 200 931217
自由氯 6 0.05-6.00mg/l Cl2 24 400 931219
鉻（VI） 0.04 - 1.00mg/l CrO42- 18 140 931220
銅 0.1-5.0 mg/lCu2+ 24 100 931237
氰化物 0.01-0.20 mg/lCN- 12 100 931222
氰尿酸 10-100mg/lCya 18 100 931223
氟化物 0.1-2.0mg/lF- 18 150 931227
聯氨 0.05-0.40mg/lN2H4 12 130 931230
鐵 0.04-2.00mg/l Fe 24 100 931226
錳 0.1-5.0 mg/l Mn2+ 18 70 931238
鎳 0.04 - 5.0 mg/l Ni + 18 150 931240
硝酸鹽 1-80 mg/lNO3- 18 110 931241
亞硝酸鹽 0.02-0.50 mg/lNO2- 18 120 931244
氧 1-8mg/l O2 12 50 931288
pH6.0-8.2 pH6.0-8.2 18 150 931270
磷酸鹽（DEV） 0.2-5.0 mg/l PO4-P0.6-15.0 mg/l PO43-36 80 931284
鉀 2-25 mg/lK+ 36 60 931232
二氧化硅 0.2-3.0mg/l SiO2 36 60 931233
硫酸鹽 20-200mg/l SO42- 36 100 931292
硫化物 0.05-0.80mg/l S2- 36 90 931294
鋅 0.1-3.0mg/l Zn+ 12 120 931298
參數 測試范圍 保質期 測試次數 產品編號
鋁 07 0.02 - 0.70 mg/l Al3+ 12 19 985098
氨氮 03 0.04 - 2.30 mg/l NH4-N0.05 - 3.00 mg/l NH4+12 20 985003
氨氮 10 0.2 - 8.0 mg/l NH4-N0.2 - 10 mg/l NH4+12 20 985004
氨氮 501 - 40 mg/l NH4-N1 - 50 mg/l NH4+12 20 985005
氨氮 1004 - 80 mg/l NH4-N5 – 100 mg/l NH4+12 20 985008
氨氮 20030 - 160 mg/l NH4-N40 - 200 mg/l NH4+12 20 985006
AOX(吸附型有機結合鹵素)0.1 - 3.0 mg/l AOX0.01 - 0.3 mg/l AOX12 20 985007
BOD5 0.5 – 12.0 mg/l O2 24 25-50 985822
BOD5-TT 0.5 – 7.5 mg/l O2 24 22 985825
鎘 2 0.05 - 2.00 mg/l Cd2+ 12 10-19 985014
碳酸鹽硬度 151.0 - 15.0 °d0.4 - 5.4 mmol/l H+12 20 985015
氯化物 200 5 - 200 mg/l Cl- 12 20 985019
氯化物 50 0.5 - 50 mg/l Cl- 12 20 985021
氯 2/臭氧 20.05 – 2.50 mg/l Cl20.05 – 2.00 mg/l O312 20 985017
二氧化氯 5 0.15 - 5.0 mg/l ClO2 12 20 985018
鉻酸鹽 50.05 – 2.00 mg/l Cr(VI)0.1 – 4.0 mg/l CrO42–24 20 985024
COD 40 2 - 40 mg/l O2 12 20 985027
COD 60 5 - 60 mg/l O2 12 20 985022
COD 160 15 - 160 mg/l O2 12 20 985026
COD 160 Hg-free 15 - 160 mg/l O2 12 20 963026
COD 300 50 - 300 mg/l O2 12 20 985033
COD 1500 100 - 1500 mg/l O2 12 20 985029
COD 10000 1.00 - 10.00 g/l O2 12 20 985023
COD 15000 1.0 - 15.0 g/l O2 12 20 985028
COD 60000 5.0 - 60.0 g/l O2 12 20 985012
有機化合物（例行測試） 0.5-10mg/1 4Bic 12 10-19 985052
銅 7 0.10 – 7.00 mg/l Cu2+ 12 20 985054
氰化物 08 0.02 - 0.80 mg/l CN- 12 20 985031
DEHA 1 二乙基羥胺 0.05 - 1.00 mg/l DEHA 12 20 985035
乙醇 0.10 - 1.00 g/l EtOH 24＜0℃ 23 985838
.................................
